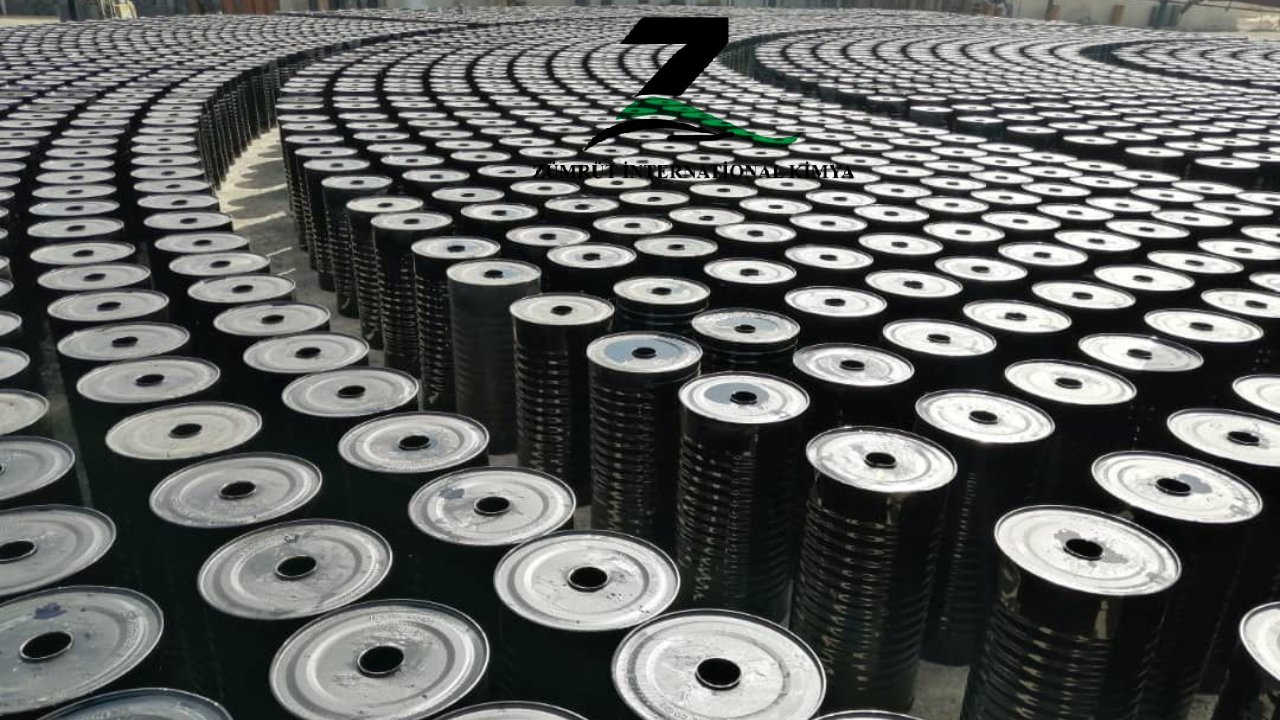

Viscosity Grade Bitumen-(VG10,VG20,VG30,VG40) From Turkey and Dubai-UAE



General Description of Viscosity Grade Bitumen (Asphalt)

Viscosity grade bitumen, also known as asphalt, is a type of bitumen specifically designed for use in road construction and other asphalt-based applications. It is characterized by its viscosity, or flow resistance, at a particular temperature, usually 60°C (140°F), which determines its suitability for different climatic conditions.

Here's a general description of viscosity grade bitumen:

1.   Composition : Viscosity grade bitumen is derived from the fractional distillation of crude oil. It consists mainly of hydrocarbons and is a black, viscous, and sticky substance at room temperature.

2.  Classification : VG bitumen is classified into various grades based on its viscosity at 60°C. This classification system typically includes grades such as VG 10, VG 20, VG 30, VG 40, and VG 50, each indicating a different viscosity range.

3.  Physical Properties : VG bitumen exhibits specific physical properties, including viscosity, penetration, softening point, ductility, and elastic recovery. These properties influence its performance in various applications, such as road paving and waterproofing.

4.  Applications : Viscosity grade bitumen is primarily used in road construction for asphalt pavements, where it provides durability, flexibility, and resistance to weathering, aging, and deformation. It is also used in the manufacturing of roofing materials, waterproofing membranes, and industrial coatings.

5.  Production : VG bitumen is produced through a refining process that separates bitumen from other petroleum products. It may undergo additional processing, such as modification with additives or polymers, to enhance its performance characteristics.

6.  Quality Control : Quality control measures are essential throughout the production, transportation, and application of viscosity grade bitumen to ensure consistency and compliance with industry standards and specifications.

Overall, viscosity grade bitumen is a vital component in the construction industry due to its versatility, durability, and ability to withstand various environmental conditions. It plays a crucial role in infrastructure development, providing strong and long-lasting surfaces for roads, highways, and other paved areas.

Viscosity Grade Bitumen (VG Bitumen) Advantages And Benefits

Viscosity grade bitumen (VG bitumen) offers several advantages and benefits in various construction applications, particularly in road paving and asphalt-related projects. Here are some of the key advantages:

1.  Climate Adaptability : VG bitumen is available in different grades tailored to specific climatic conditions. This ensures that the asphalt pavement remains stable and durable in various temperature ranges, from hot to cold climates.

2.  Durability : VG bitumen provides excellent durability, resisting wear and tear from heavy traffic, weathering, and aging. This durability leads to longer-lasting asphalt pavements with reduced maintenance needs and costs over time.

3.  Flexibility : VG bitumen has good flexibility, allowing it to expand and contract with temperature changes without cracking or deforming. This flexibility helps prevent the formation of cracks, rutting, and other surface defects, extending the life of the pavement.

4.  Adhesion : VG bitumen exhibits strong adhesion properties, ensuring proper bonding between asphalt layers and with underlying surfaces. This enhances the structural integrity of the pavement, reducing the risk of delamination and pavement failures.

5.  Versatility : VG bitumen can be used in various construction applications beyond road paving, including waterproofing membranes, roofing materials, industrial coatings, and more. Its versatility makes it a valuable material for a wide range of infrastructure projects.

6.  Ease of Application : VG bitumen is easy to handle and apply during asphalt mixing and pavement construction. Its workability allows for efficient and cost-effective construction processes, saving time and labor costs.

7.  Customization : VG bitumen can be easily modified with additives or polymers to enhance its performance characteristics, such as improving elasticity, adhesion, fatigue resistance, and rutting resistance. This allows for customized asphalt mixes tailored to specific project requirements.

8.  Sustainability : Using VG bitumen in road construction can contribute to sustainable development by improving the longevity of pavements, reducing the need for frequent repairs and replacements, and minimizing the environmental impact of construction activities.

Application of Viscosity Grade Bitumen (Asphalt)

Viscosity grade bitumen (VG bitumen) finds extensive application in various construction projects, primarily in road paving and asphalt-related activities. Some of the key applications of viscosity grade bitumen include:

1.  Asphalt Pavements : VG bitumen is commonly used as a binder in asphalt mixtures for road construction. It provides the necessary adhesive and cohesive properties to bind aggregates together, creating a durable and resilient pavement surface that can withstand heavy traffic loads, weathering, and environmental factors.

2.  Road Rehabilitation and Maintenance : VG bitumen is used in road rehabilitation projects to repair and maintain existing asphalt pavements. It is applied in processes such as overlaying, resurfacing, and patching to restore the structural integrity and smoothness of the road surface.

3.  Hot Mix Asphalt (HMA) Production : VG bitumen is a key component in the production of hot mix asphalt (HMA). It is combined with aggregates, fillers, and additives in precise proportions to produce asphalt mixes with the desired performance characteristics, including stability, durability, and resistance to rutting and fatigue.

4.  Surface Dressing and Seal Coating : VG bitumen is used in surface dressing and seal coating applications to protect asphalt pavements from moisture intrusion, oxidation, and surface wear. It forms a thin, waterproof layer on the pavement surface, improving its skid resistance and extending its service life.

5.  Waterproofing Membranes : VG bitumen is utilized in the manufacturing of waterproofing membranes for buildings, bridges, tunnels, and other structures. These membranes provide an effective barrier against water penetration, protecting the underlying structure from moisture damage and corrosion.

6.  Roofing Materials : VG bitumen is incorporated into roofing materials such as asphalt shingles, built-up roofing (BUR), and modified bitumen membranes. It serves as a weatherproofing agent, enhancing the durability and longevity of the roof while providing thermal insulation and energy efficiency.

7.  Industrial Coatings : VG bitumen is used in the formulation of industrial coatings for corrosion protection, anti-skid surfaces, tank linings, pipe coatings, and other applications requiring durable and protective surface treatments.

Viscosity Grade Bitumen Specification

Viscosity grade bitumen (VG bitumen) specifications typically cover various properties and parameters to ensure its suitability for construction applications, particularly in road paving. Here are some common specifications for VG bitumen:

1.  Viscosity at 60°C (140°F) : VG bitumen is classified based on its viscosity at a standard temperature of 60°C (140°F). The viscosity range determines the grade of bitumen, with higher viscosity grades (e.g., VG 40, VG 50) indicating thicker and more viscous bitumen, while lower viscosity grades (e.g., VG 10, VG 20) indicate thinner and less viscous bitumen.

2.  Penetration : Penetration refers to the depth (in tenths of a millimeter) to which a standard needle penetrates into a sample of bitumen under specified conditions of temperature, load, and time. VG bitumen specifications may include limits or ranges for penetration values, which indicate the hardness or consistency of the bitumen.

3.  Softening Point : The softening point is the temperature at which a sample of bitumen softens and becomes fluid under specified conditions. Specifications may specify the softening point range to ensure the bitumen's suitability for the intended application and environmental conditions.

4.  Ductility : Ductility measures the ability of bitumen to stretch without breaking. It is determined by the length in centimeters to which a standard briquette of bitumen can be stretched before breaking at a specified temperature and speed. VG bitumen specifications may include minimum ductility values to ensure adequate flexibility and resistance to deformation.

5.  Elastic Recovery : Elastic recovery measures the ability of bitumen to return to its original shape after being stretched. It is expressed as a percentage of the original length of the bitumen briquette that is recovered after stretching. Specifications may include minimum elastic recovery values to ensure the bitumen's resilience and durability under traffic loading and temperature fluctuations.

These specifications are typically established by standards organizations such as ASTM International, European Committee for Standardization (CEN), American Association of State Highway and Transportation Officials (AASHTO), and national road authorities or regulatory agencies. Compliance with these specifications ensures that viscosity grade bitumen meets the required quality and performance standards for use in road construction and other asphalt-related applications.

What is viscosity grade bitumen AC(AC grade bitumen)

Viscosity grade bitumen AC (AC grade bitumen) refers to a type of bitumen classified according to its viscosity or resistance to flow at a specific temperature. AC grade bitumen is commonly used in road construction and asphalt paving projects. The "AC" designation stands for "Asphalt Cement," indicating its primary use as a binder in asphalt mixes. These grades are typically specified based on their viscosity at 60°C and are commonly used in various asphalt applications, including highways, roads, and airport runways.

Different viscosity grade bitumen VG and AC

Viscosity grade bitumen (VG) and asphalt cement (AC) are two different classification systems used to categorize bitumen based on their viscosity or flow characteristics at a specific temperature. While both systems serve a similar purpose, they are used in different regions and have slightly different grading methods.

1. Viscosity Grade Bitumen (VG):
– VG classification is commonly used in Europe and many parts of Asia.
– VG bitumen is classified based on its kinematic viscosity at 60°C, expressed in centistokes (cSt).
– Common VG grades include VG-10, VG-20, VG-30, VG-40, VG-50, and VG-60, with the number indicating the nominal viscosity.
– VG grades are widely used in various applications, including road construction, roofing, waterproofing, and industrial purposes.

2. Asphalt Cement (AC):
– AC classification is primarily used in North America, particularly in the United States.
– AC bitumen is classified based on its penetration and viscosity at 60°C.
– Common AC grades include AC-2.5, AC-5, AC-10, AC-20, AC-30, and AC-40, with the number indicating the penetration value in units of 0.1 mm and the letter indicating the viscosity grade.
– AC grades are predominantly used as binders in asphalt mixes for road construction, pavements, and other asphalt applications.

While both VG and AC classifications serve similar purposes of categorizing bitumen based on viscosity, they have different grading methods and are used in different regions. However, the end goal is to provide engineers and contractors with options to select bitumen grades that meet specific project requirements and performance criteria.

Advantages and Disadvantages of Viscosity Grading as stated below



The new method of grading the product has now rested on the viscosity of the Bitumen (at 60°C and 135°C). The new grades have thus evolved with nomenclature:



Viscosity grade over penetration grade several key issues are addressed, like:

• Performance at high temperatures by adopting a viscosity-graded bitumen specification (based on viscosity at 60 °C), in place of the current penetration-graded specification (based on penetration at 25 °C)
• Issues relating to compaction, which the tender asphalt mixtures create as push and shove under the roller wheels, have also addressed by having a requirement of minimum viscosity at 135°C, it will be helpful in minimizing the tender mix problems in the field.
• Adoption of viscosity-graded paving bitumen specifications will also reduce the number of total tests to 7 Without compromising the quality of bitumen and also no new tests are required in implementing this specification.

Viscosity grades Bitumen are categorized according to Viscosity (degree of fluidity) grading. The higher the grade, the stiffer the Bitumen. In Viscosity Grade, Viscosity tests are conducted at 60°C and 135°C, which represents the temperature of road surface during summer and mixing temperature respectively. The penetration at 25°C, which is annual average pavement temperature, has been also retained in Specifications.

Viscosity Grade Bitumen Specification (ASTM D3381-09)

Viscosity Grade Bitumen Specification (IS 73:2013)
