Bentonite Drilling Grade API 13 A and Bentonite OCMA From Turkey

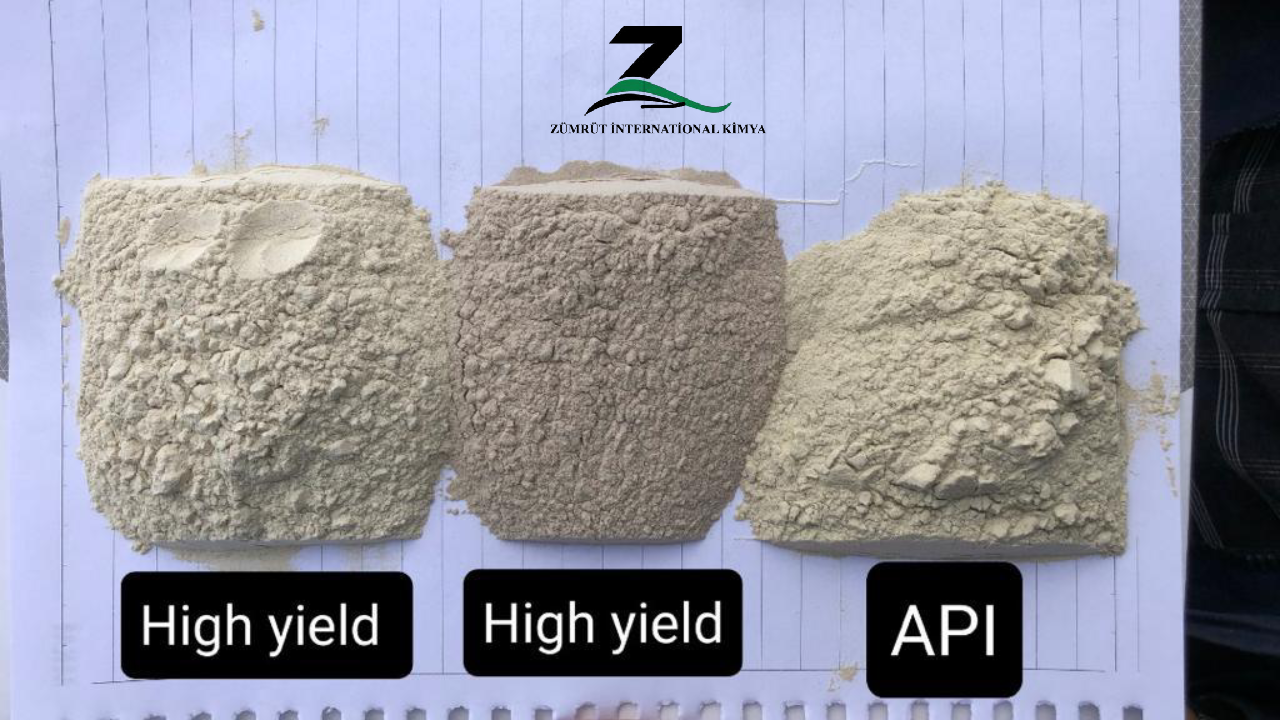

Description Of Bentonite Powder Drilling Grade

Bentonite powder, specifically drilling grade, is a critical component used in drilling fluids for oil and gas exploration. It is primarily composed of the mineral montmorillonite, which belongs to the smectite group of clays. This type of bentonite is valued for its unique properties that enhance the performance of drilling fluids, such as its ability to swell, form gels, and control fluid loss.

Applications Bentonite Powder in Drilling Operations

1. Drilling Fluids :
   – Bentonite is a key component in water-based drilling muds, providing essential properties such as viscosity, gel strength, and fluid loss control.
2. Wellbore Stabilization :
   – The gel-like properties of bentonite help stabilize the wellbore, preventing collapse and maintaining integrity.
3. Cuttings Transport :
   – The increased viscosity of the drilling fluid due to bentonite improves the transportation of drill cuttings to the surface.
4. Filter Cake Formation :
   – Bentonite’s ability to form a low-permeability filter cake minimizes fluid invasion into the formation, protecting the wellbore and maintaining drilling efficiency.

Specifications of Drilling Grade Bentonite

–  Yield :
– Drilling grade bentonite typically has a high yield, meaning a small amount can produce a large volume of drilling fluid. A common specification is 90 barrels per ton.

• Swelling Index :
  – High swelling index, often greater than 30 ml/2 g.
• Moisture Content :
  – Typically, the moisture content is below 12%.
• Sand Content :
  – Low sand content, usually less than 2%, to avoid abrasive wear on drilling equipment.
• Viscosity :
  – Meets or exceeds the American Petroleum Institute (API) standards for drilling fluids.

Properties of Drilling Grade Bentonite

1. Swelling Capacity :
   – Bentonite has the remarkable ability to absorb water and expand up to several times its dry volume, forming a viscous, gel-like substance.
2. Viscosity :
   – It increases the viscosity of drilling fluids, aiding in the suspension and removal of cuttings from the wellbore.
3. Thixotropy :
   – Bentonite exhibits thixotropic properties, meaning it forms a gel when at rest and becomes fluid when agitated. This helps in maintaining wellbore stability during drilling operations.
4. Filtration Control :
   – Bentonite forms a thin, low-permeability filter cake on the wellbore walls, preventing excessive fluid loss to the surrounding formations.
5. pH Control :
   – It helps in maintaining the pH of the drilling fluid, typically in the range of 8.5 to 10.5, which is optimal for drilling operations.

Packing of Bentonite Powder Drilling Grade

Packing of drilling grade bentonite powder is crucial to ensure its quality and ease of handling during transportation and storage. The packaging must protect the product from moisture, contamination, and physical damage. Here are the common packing methods for drilling grade bentonite powder:

According to customer’s demands.

• 25 kg Bag, 40 kg Bag, 50 kg Bag,

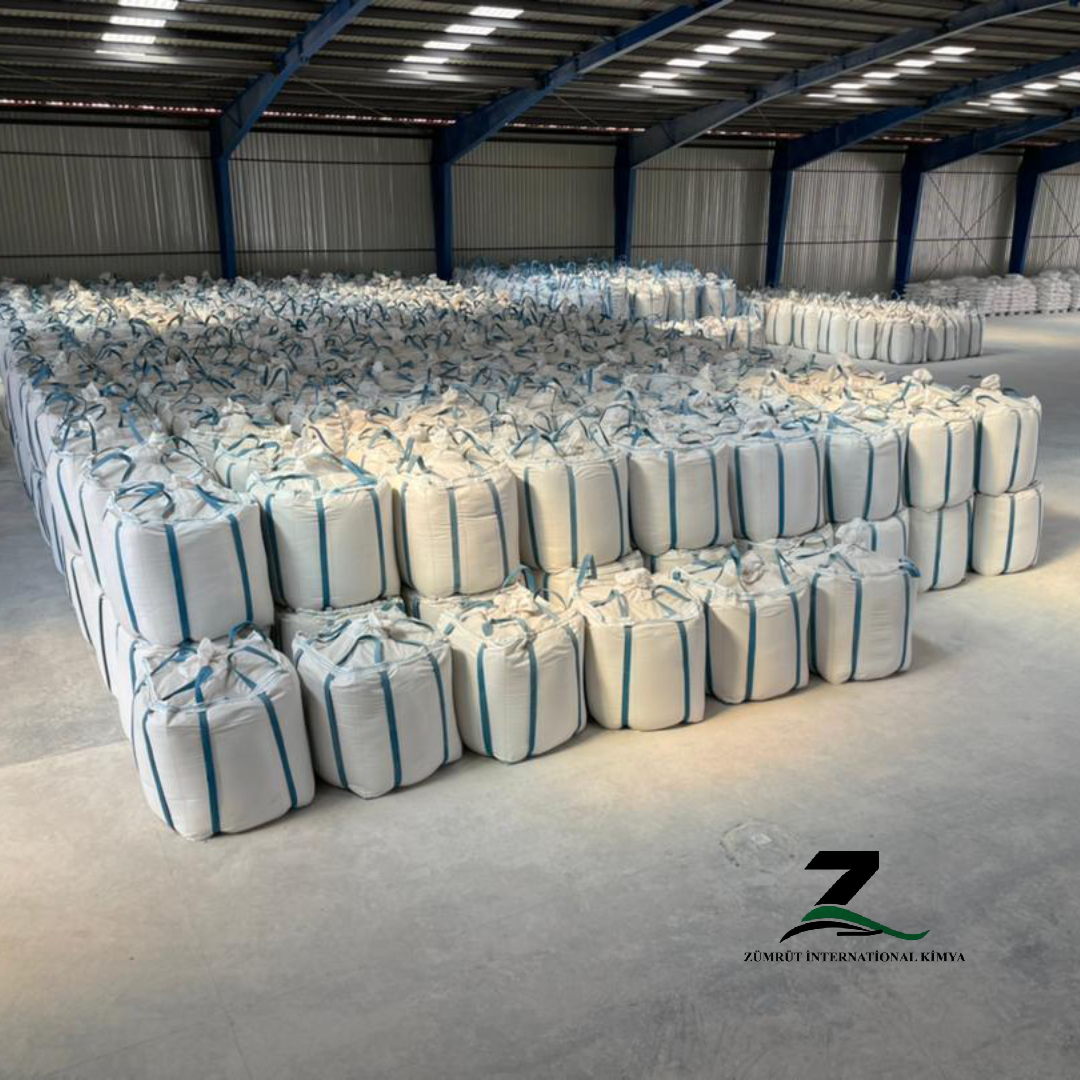

• 1.0 MT Jumbo Bag, 1.15 MT Jumbo Bag, 1.25 MT Jumbo Bag.

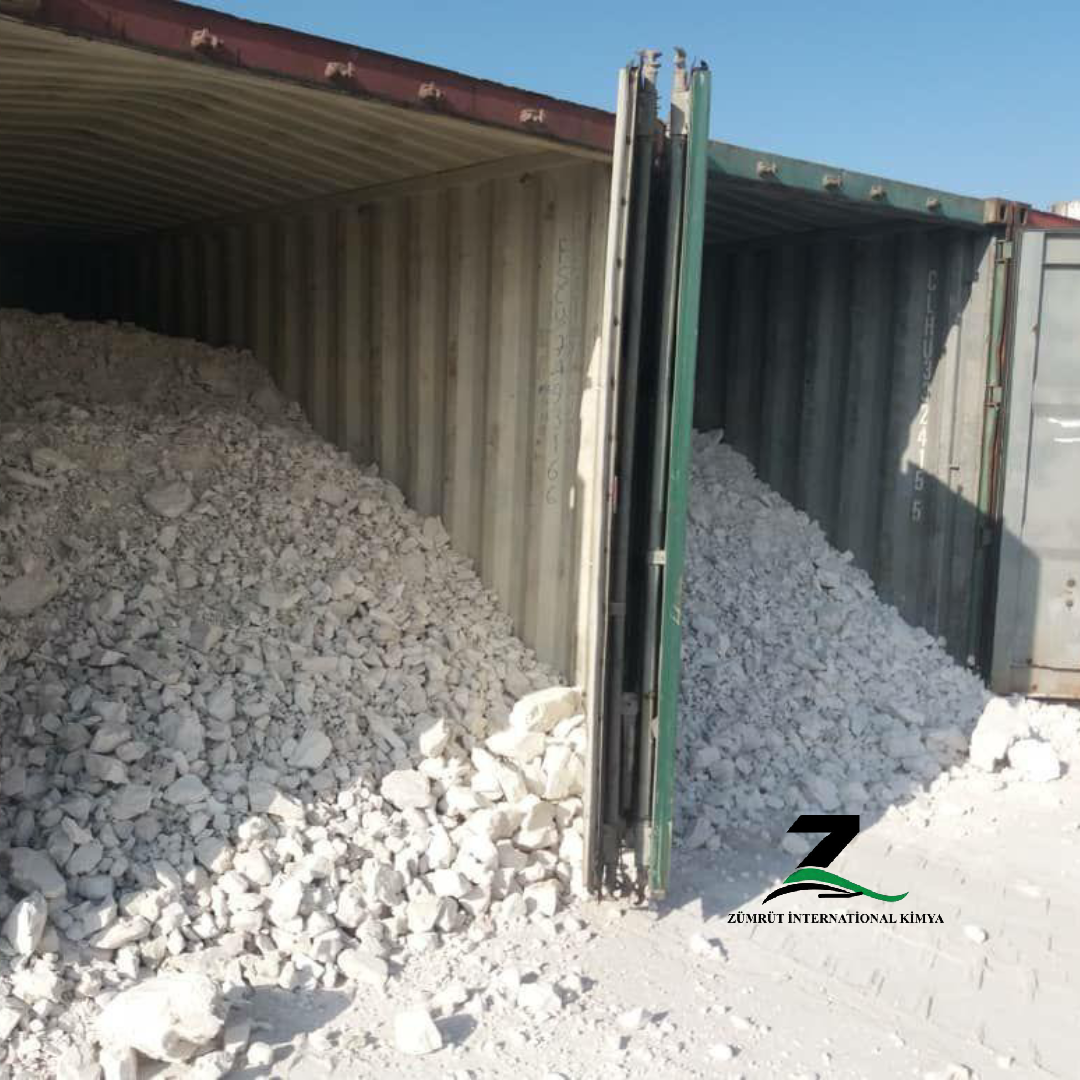

• Can be loose bulks in 1*20 FCL 25-27 tons (Lump form)



Preparation and Handling

• Mixing :
  – Bentonite powder should be added slowly to the circulating system or a mixing tank with sufficient agitation to ensure proper dispersion and hydration.
• Handling Precautions :
  – Use appropriate personal protective equipment (PPE) such as gloves and dust masks to prevent skin and respiratory irritation.

Environmental Considerations

• Non-Toxic :
  – Bentonite is non-toxic and environmentally friendly, making it a preferred choice for drilling operations in environmentally sensitive areas.
• Biodegradable :
  – It is biodegradable, reducing the environmental impact of drilling operations.

Drilling grade bentonite powder is an indispensable additive in the oil and gas industry, providing crucial properties for the performance of drilling fluids. Its ability to swell, form gels, and control fluid loss makes it essential for maintaining wellbore stability, transporting cuttings, and protecting the formation. With its non-toxic and biodegradable nature, bentonite is an environmentally friendly choice for drilling operations.

Specification of Bentonite Powder



TECHNICAL DATA SHEET OF BETONITE POWDER FOR DRILLING (API 13 GRADE)



Technical Data Sheet of Bentonite Powder for Drilling 13 A GRADE



Technical Data Sheet of API 13 A-Section 11(ocma):



T.D.S Drilling Bentonite Powder OCMA



Technical Data Sheet of Drilling (High yield)



Technical Data Sheet of Drilling (High yield)



Technical Data Sheet of Fertilizing:

Technical Data Sheet of Fertilizing



Technical Data Sheet of Tiles and ceramics:

Technical Data Sheet of Tiles and ceramics
