Bitumen Emulsion for Sand Seal
The asphalt surface of the roads can experience erosion, raveling, loss of aggregate, honeycombing, and sulphate attacks over time due to weather conditions such as frost, sunlight, heat, and also road salting, snow removal, as well as the effects of excessive loading and friction, especially caused by tire chains and snowplow blades. Failing to repair and install overlay asphalt in due time will allow damages to expand, leading to complete destruction of the road surface and even the underlying layers. The use of protective layers is recommended to prevent intensification of asphalt wear out, postpone overlay installation, maintain the existing conditions, and fill the cracks.
In addition to providing a suitable road surface, these layers will waterproof it and prevent the destruction of asphalt and its underlying layers. This is a cheap maintenance method that will ensure uninterrupted and secure operation of the roads. Different methods are recommended based on the degree of destruction, the weight and volume of traffic, and type of asphalt. These methods are inexpensive and can be employed early after or even before the beginning of asphalt pavement distress.
Applying a CRS or CSS bitumen emulsion layer with fine aggregates or clean and washed sand.

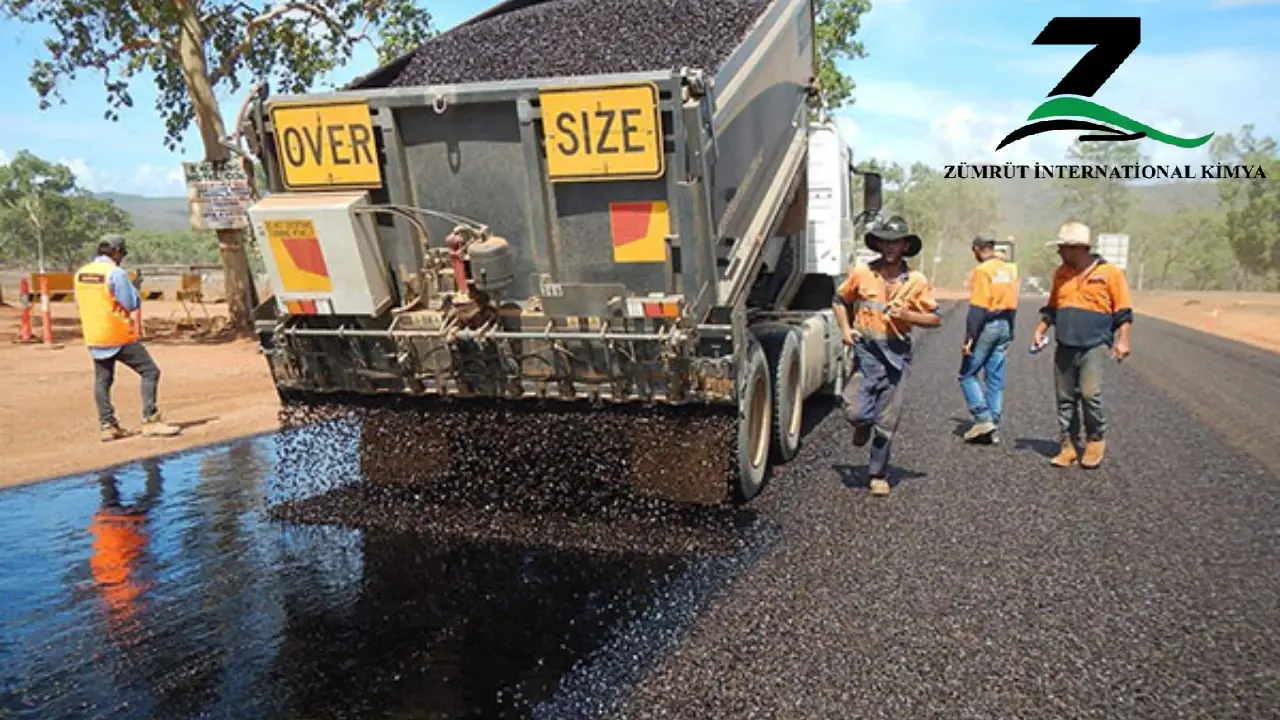

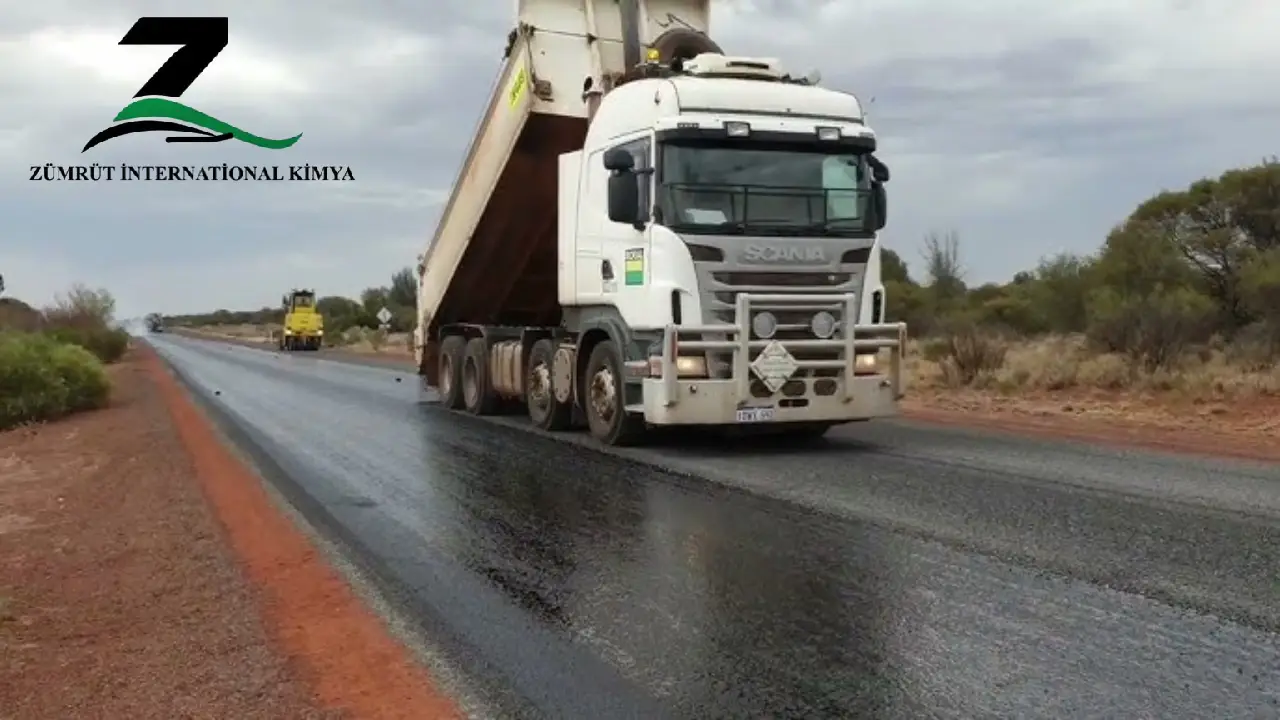

A sand seal is a spray application of asphalt emulsion followed with a light covering of fine aggregate, such as a clean sand or screenings. Although this is a simple operation, it can be useful in correcting a number of pavement flaws. Emulsion is usually sprayed between 0.7 l/m2 to 1.25 l/m2 and sand is placed at 5.5 kg/m2 to 12 kg/m2 as a cover.
Applications of Sand Seals
- Transportation Across Deserts:
– Sand Seals are the primary means of quick and efficient movement across the Gerudo Desert’s vast and treacherous sandy terrain.
– Players can attach a leash to a shield and “seal-surf,” avoiding hazards like quicksand and extreme heat. - Exploration Aid:
– Using Sand Seals allows adventurers to explore remote areas of the desert, reaching locations that would be too time-consuming or dangerous to access on foot.
– They’re invaluable for finding shrines, treasure, or completing quests in the desert. - Combat Strategy:
– While seal-surfing, players retain the ability to wield bows or other ranged weapons, enabling dynamic combat strategies, especially when attacking moving targets or evading hostile creatures. - Participation in Minigames:
– Sand Seal racing is a popular activity in Gerudo Town. Players can compete for prizes, improve their seal-surfing skills, and enjoy a fun diversion from the main story. - Cultural Symbol and Tourism:
– Sand Seals play a vital role in Gerudo culture, being both practical and symbolic creatures.
– Renting Sand Seals has become a form of eco-tourism within the region, supporting the local economy and enhancing the player’s interaction with the Gerudo people. - Efficient Quicksand Navigation:
– Sand Seals effortlessly glide over quicksand, helping players avoid getting stuck or taking damage from hazardous desert terrain. - Heat Resistance Assistance:
– Riding a Sand Seal reduces the time spent walking under the scorching sun, making heat resistance elixirs or gear last longer. - Quest and Challenge Completion:
– Some quests specifically require the use of a Sand Seal to complete objectives or navigate certain areas quickly, enhancing the game’s strategic depth.
Performance Guidelines
In order to construct a proper well designed sand seal the following guidelines should be followed:
- Design a sand seal with aggregate to be used on job
- Use a clean sand or screenings
- Ensure compatibility of aggregate and emulsion
- Calibrate and inspect all equipment.
- Use sufficient number and properly pneumatic rollers.
- Follow proper construction techniques.
- Use traffic control to protect seal
- Work only in weather suitable for type and grade of emulsion being used
Advantages of Using Bitumen Emulsion in Sand Sealing
- Environmentally Friendly:
– Bitumen emulsions do not require heating, reducing energy consumption and lowering greenhouse gas emissions compared to hot bitumen.
– The water-based composition minimizes the release of harmful fumes during application. - Ease of Application:
– It can be applied at ambient temperatures, simplifying the process and reducing the need for specialized heating equipment.
– The liquid form allows for easier mixing and uniform distribution of the sealant. - Improved Adhesion:
– Bitumen emulsion penetrates the sand particles effectively, creating a strong bond between the sand and the road surface.
– This enhances the durability of the sand seal and provides better resistance to wear and tear. - Cost-Effective:
– Lower energy requirements reduce operational costs.
– Minimal equipment maintenance is needed, as there is no heating apparatus involved.
– Reduces the likelihood of expensive repairs by extending the lifespan of the road. - Faster Workability:
– Quick curing and setting times allow for faster project completion and earlier reopening of roads to traffic.
– Suitable for immediate use in emergencies or when time constraints are a factor. - Water Resistance:
– Provides excellent water-proofing qualities, protecting the underlying layers of the road from water infiltration and reducing damage from moisture. - Versatility:
– Can be used in various weather conditions, including colder climates where hot bitumen might not be viable.
– Suitable for different types of roads, from highways to rural roads. - Safety:
– Eliminates risks associated with handling hot bitumen, such as burns and fires.
– Reduces worker exposure to harmful fumes and improves overall site safety. - Improved Road Performance:
– Reduces dust generation on unsealed roads, improving visibility and safety for drivers.
– Creates a smoother, skid-resistant surface, enhancing road user comfort and safety. - Flexibility and Crack Resistance:
– The emulsion retains flexibility after curing, allowing it to accommodate minor road movements without cracking.
– This adaptability helps maintain the integrity of the road seal under varying load and temperature conditions.
