Viscosity Grade Bitumen 40



What is Viscosity Grade Bitumen 40?

Viscosity Grade Bitumen 40 (VG-40) is a type of bitumen classified based on its viscosity at specific temperatures, following the viscosity grading system. VG-40 is the hardest grade in the viscosity grading system, making it suitable for applications that require high resistance to deformation and are exposed to very heavy traffic loads and high temperatures.

      Key Properties of VG-40

         Physical Properties

1. Viscosity:
   –  At 60°C: VG-40 bitumen has a viscosity range of 400 ± 80 poises.
   –  At 135°C: Viscosity is also measured at this temperature to ensure suitability for mixing and application, with VG-40 demonstrating a high viscosity appropriate for heavy-duty uses.
2. Penetration:
   – Measures the hardness by the depth a standard needle penetrates at 25°C. VG-40 has a low penetration value, indicating it is the hardest among viscosity-graded bitumens.
3. Softening Point:
   – The temperature at which bitumen softens and becomes flowable. For VG-40, the softening point is typically higher, around 60-70°C, making it suitable for high-temperature conditions.
4. Ductility:
   – Indicates the ability of bitumen to stretch without breaking. VG-40 bitumen generally has sufficient ductility, measured at 25°C, although it is less ductile compared to lower viscosity grades due to its higher hardness.
5. Flash Point:
   – The temperature at which bitumen emits vapor that can ignite in air. VG-40 has a high flash point, typically above 220°C, ensuring safety during heating and application.

            Chemical Properties

1. Solubility in Trichloroethylene:
   – Viscosity Grade Bitumen 40 should have a solubility of 99% or higher, indicating high purity and the absence of significant non-bituminous materials.
2. Loss on Heating:*
   – The percentage loss in weight after heating for a specified duration. VG-40 exhibits minimal loss on heating, generally less than 1%, indicating good thermal stability.

            Performance Properties

1. Adhesion:
   – Viscosity Grade Bitumen 40 has excellent adhesive properties, ensuring it binds well with aggregates. This improves the overall integrity and durability of the pavement, reducing the risk of surface wear and disintegration.
2. Temperature Susceptibility:
   – Viscosity Grade Bitumen 40 is designed to perform well in high-temperature environments, maintaining its structural integrity and resistance to deformation.
3. Durability:
   – Exhibits excellent resistance to aging and weathering, ensuring long-lasting performance even under heavy traffic loads and extreme weather conditions.

Common Applications of VG-40

1. Heavy Traffic Roads:
   – Ideal for heavily trafficked roads, highways, and urban roads where the pavement needs to endure substantial stress and high loads.
2. Airport Runways and Taxiways:
   – Suitable for constructing and maintaining airport runways and taxiways due to its ability to handle heavy loads and resist deformation.
3. Industrial and Port Roads:
   – Used in areas with high axle loads and heavy-duty applications, such as industrial roads, port areas, and container terminals.
4. Bituminous Concrete:
   – Viscosity Grade Bitumen 40 is used in the production of bituminous concrete for road surfaces, providing a stable and durable layer that can withstand heavy traffic loads.
5. Bridge Deck Surfacing:
   – Suitable for surfacing bridge decks, where high resistance to deformation and durability are critical.
6. High-Stress Areas:
   – Used in areas subjected to high stress and high temperatures, ensuring that the pavement remains intact and functional under severe conditions.

    Specific Tests and Standards

VG-40 bitumen must meet the specifications set by various standards organizations, such as Indian Standards (IS), American Society for Testing and Materials (ASTM), or other regional standards. Common tests include:

• Viscosity Test (IS 1206 (Part II) or ASTM D2171):  To determine the viscosity at specified temperatures.
• Penetration Test (IS 1203 or ASTM D5): To measure the penetration value.
• Softening Point Test (IS 1205 or ASTM D36): To determine the softening point.
• Ductility Test (IS 1208 or ASTM D113): To assess ductility.
• Flash Point Test (IS 1209 or ASTM D92): To determine the flash point.
• Solubility Test (IS 1216 or ASTM D2042): To measure solubility in trichloroethylene.

These properties and tests ensure that VG-40 bitumen meets the necessary performance criteria for demanding applications, particularly in regions with heavy traffic and high temperatures, ensuring reliable and durable road infrastructure.

Packing of VG Bitumen 40

Viscosity Grade 40 is typically packed and transported in a variety of ways Here are some common packing options for Bitumen VG 40:

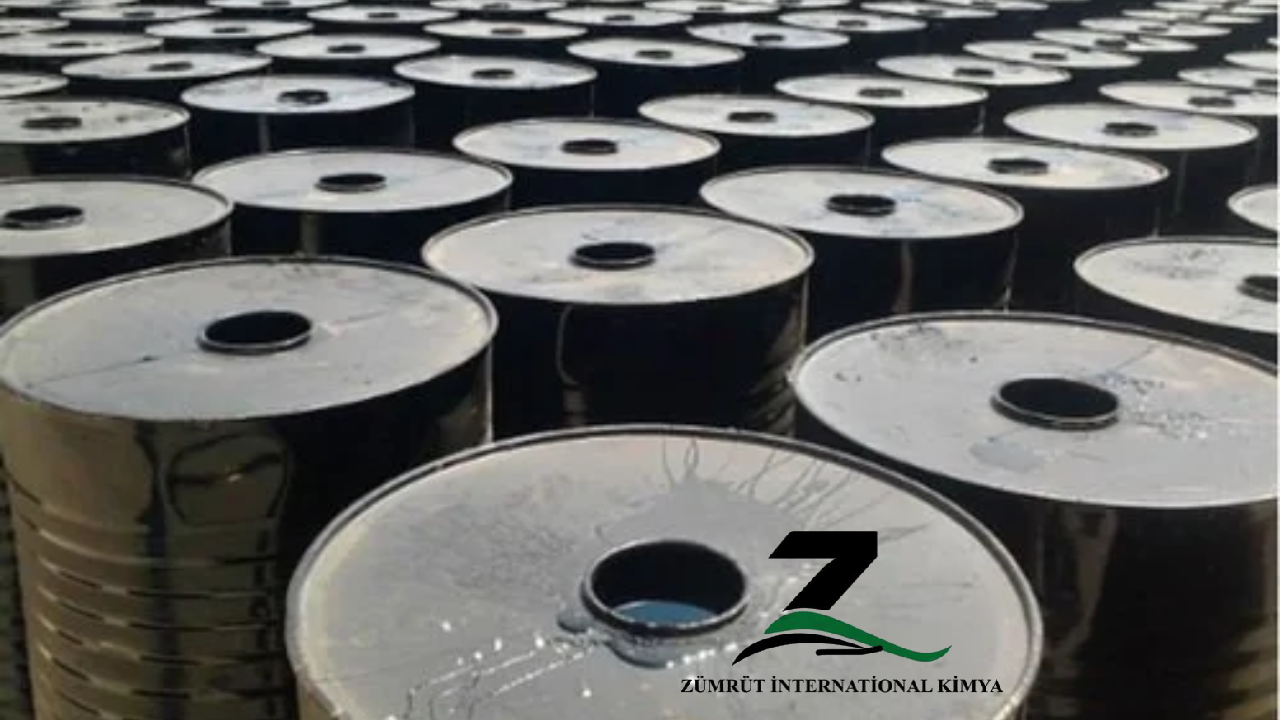

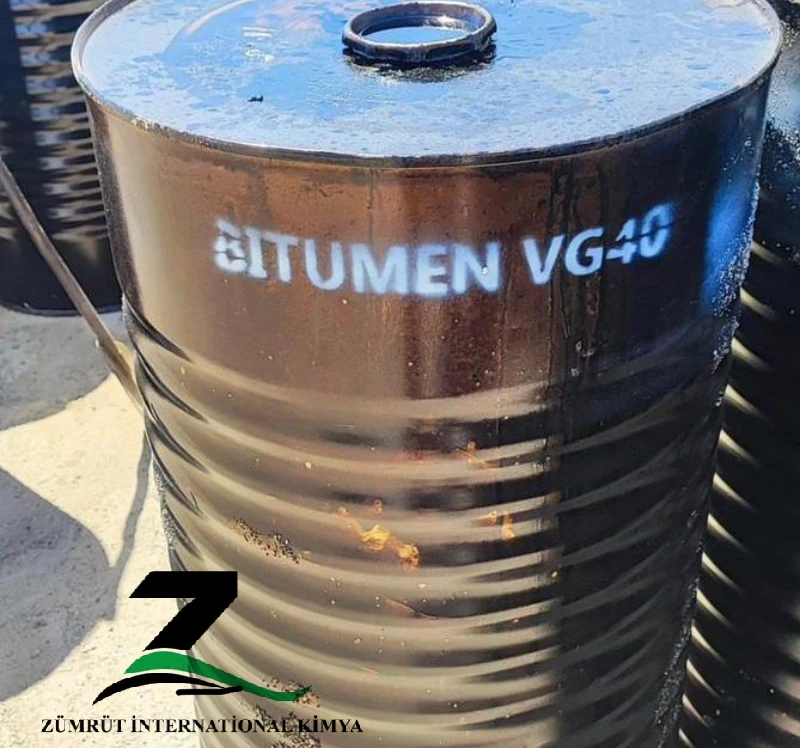

• New Steel Drum => 180Kg
• Bitubag => 375Kg
• Bulk in vessel
• Bulk in Flexi Bag
• Bulk in Tanker

Safety of Viscosity Grade 40

Viscosity Grade Bitumen 40 (VG-40) is widely used in construction and industrial applications due to its high viscosity and durability. However, like all bitumen products, handling and usage of VG-40 involve certain safety considerations to ensure the health and safety of workers and the environment. Here are the key safety aspects of VG-40 bitumen:

          Key Safety Considerations for VG-40

1. High Temperature Handling:
   –  Flash Point: VG-40 has a high flash point, typically above 220°C. While this reduces the risk of ignition, it is still crucial to handle bitumen at appropriate temperatures to prevent fire hazards. Avoid overheating and ensure that all equipment used to heat bitumen is functioning correctly and monitored.
   –  Burn Risks: Bitumen is applied at high temperatures (usually around 150-180°C). Direct contact can cause severe burns. Workers should use proper personal protective equipment (PPE) such as heat-resistant gloves, long-sleeved clothing, face shields, and heat-resistant boots.
2. Fumes and Vapors:*
   –  Inhalation Hazards: When heated, bitumen can release fumes that may contain hazardous substances, such as polycyclic aromatic hydrocarbons (PAHs). Prolonged inhalation of these fumes can cause respiratory issues and other health problems. Ensure proper ventilation in work areas and consider using fume extraction systems.
   –  PPE for Respiratory Protection: Workers should use respiratory protection, such as masks or respirators, especially in confined or poorly ventilated spaces.
3. Handling and Storage:*
   –  Spill Prevention: Ensure proper storage in sealed containers to prevent spills and leaks. If spills occur, they should be managed promptly to avoid environmental contamination and slipping hazards.
   –  Proper Labeling: All containers should be correctly labeled with hazard symbols and safety information to inform workers of the risks and necessary precautions.
4. Chemical Reactions:
   –  Avoid Contamination: Bitumen should not be mixed with incompatible substances that could cause dangerous chemical reactions. Follow manufacturer guidelines for safe handling and storage.
   –  Use of Additives: When modifying VG-40 with additives (such as polymers), ensure that the additives are compatible and that the mixture is handled according to safety guidelines.
5. First Aid Measures:
   –  Burns: If bitumen comes into contact with skin, cool the affected area immediately with cold water and seek medical attention. Do not attempt to remove the bitumen while it is hot.
   –  Inhalation: If fumes are inhaled, move the person to fresh air and seek medical attention if symptoms persist.
6. Environmental Considerations:
   –  Disposal: Waste bitumen and empty containers should be disposed of in accordance with local environmental regulations. Do not dispose of bitumen in water bodies or soil as it can cause environmental harm.
   –  Spill Management: Have spill kits available to contain and clean up any accidental spills to minimize environmental impact.

        Summary of Safety Measures

• Personal Protective Equipment (PPE): Heat-resistant gloves, long-sleeved clothing, face shields, heat-resistant boots, and respiratory protection.
• Ventilation: Ensure proper ventilation or use fume extraction systems when working with heated bitumen.
• Proper Storage: Store bitumen in sealed containers, properly labeled, and follow guidelines to prevent spills and contamination.
• Temperature Control: Monitor and control heating equipment to prevent overheating and ensure safe handling temperatures.
• Emergency Preparedness: Have first aid measures and spill management kits readily available.

        Safety Standards and Regulations

• Occupational Safety and Health Administration (OSHA): Follow OSHA guidelines for handling bituminous materials.
• National Institute for Occupational Safety and Health (NIOSH): Adhere to NIOSH recommendations for exposure limits and protective measures.
• Local Environmental Regulations: Comply with local regulations regarding the disposal and environmental management of bitumen products.
